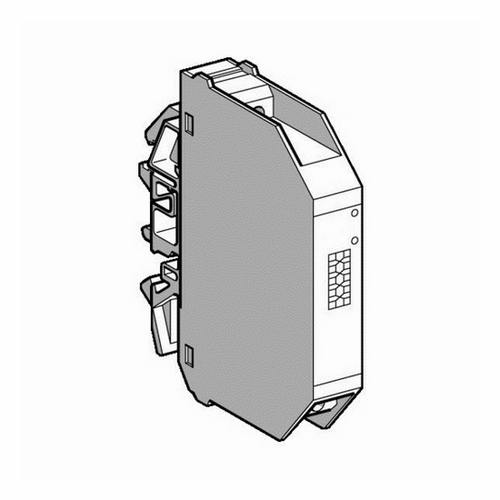

Schneider Electric ABR2S102B INTERFACE RELAY - ELE

General Purpose Relays
35322 MFG #: ABR2S102B
Schneider Electric
32.67000 / ea
files-p_Doc_Ref-PIO00007289-p_File_Type-rendition_4000_png
  • Amperage Rating: 5 A
  • Application: OUTPUT MODULE
  • ARRA Compliant: C
  • Brand: Schneider Electric
  • Buy American Compliant: C
  • Catalog Number: ABR2S102B
  • Coil: 24 V DC
  • Coil Voltage: 24 VDC
  • Connection: Screw Clamp Terminal
  • Contact Configuration: 1 NO
  • Contact Form: 1NO
  • Country of Origin: FR
  • Dimensions: 2.91 in H x 3.07 in W x 0.47 in D
  • Drop Down Voltage: 2 V
  • Enclosure Type: IP20
  • EU RoHS Indicator: Y
  • Frequency Rating: 50/60 Hz
  • Gross Volume Per Pack: 3.92
  • Gross Volume per Pack Metric: 64.16
  • Gross Volume UOM: CI
  • Gross Volume UOM Metric: cm3
  • Gross Weight Per Pack: 0.0900 lb
  • Gross Weight per Pack Metric: 0.04
  • Gross Weight UOM Metric: kg
  • Harmonization Tariff Schedule Code: 8536410020
  • Height: 0.50 in
  • Height [Metric]: 12.7000 mm
  • Item Group: 22375
  • Length: 2.90 in
  • Length [Metric]: 7.3660 cm
  • Manufacturer: Schneider Electric
  • Mounting: DIN rail
  • Mounting Type: DIN Rail
  • Number Of Poles: 1
  • Operating Temperature: -25-55 A°C AT US--25-70 A°C AT US WITH 8 MM SPACE BETWEEN ABR2S1...--5-40 A°C UNRESTRICTED OPERATION--5-55 A°C FROM 0.85...1.1 US
  • Pickup Voltage: 24 V
  • Power Rating: 0.43 W
  • Returnable: N
  • Series: ABR
  • Standard: IEC
  • Stock Status: NONSTOCK
  • Sub Brand: ADVANTYS
  • Temperature Rating: -5 to 40 °C
  • Terminal Type: Screw/Clamp
  • Type: Slim Electromechanical
  • UNSPSC: 39122325
  • UPC 11: 78590192099
  • UPC 12: 785901920991
  • Width: 2.70 in
  • Width [Metric]: 6.8580 cm
Schneider Electric ABR2S102B INTERFACE RELAY - ELECTROMECHANICAL,1 NO,24 V DC,5 A conforming to IEC 60947-1,Advantys,DIN rail,IEC,Output module,Relay module
QTY
Add to Wishlist
  • Applications
  • Features
OUTPUT MODULE
GREEN MECHANICAL INDICATOR FOR POSITION OF CONTACTS
Without LED
